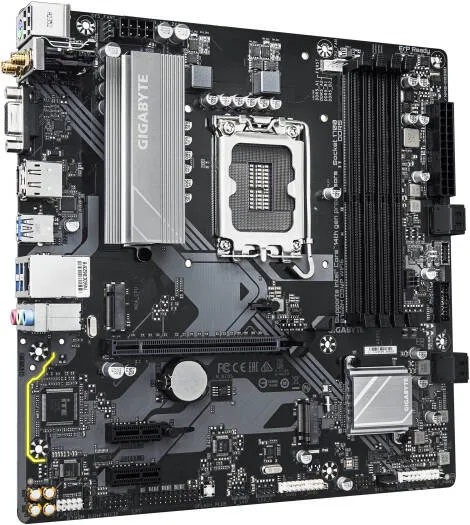

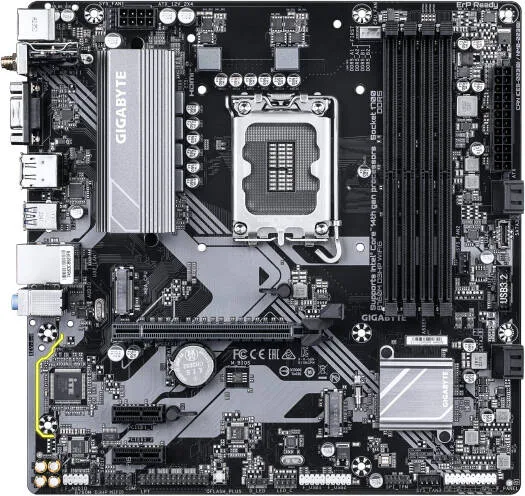

The Gigabyte B760M D3HP WIFI6 is a Micro ATX motherboard supporting Intel Core 14th, 13th, and 12th Generation processors with the LGA 1700 socket. It features a hybrid 4+1+1 phases digital VRM for stable power delivery and supports dual channel DDR5 memory up to 5600 MHz. The board includes two PCIe 4.0 x4 M.2 slots for high-speed NVMe storage, Gigabit Ethernet, and Wi-Fi 6 (802.11ax) for fast and reliable networking. For connectivity, it offers front USB-C 5Gb/s, DisplayPort, HDMI 2.1, and D-Sub outputs. It also supports Smart Fan 6 technology and Q-Flash Plus BIOS updates without the need for CPU, memory, or graphics card installed, making it a versatile choice for gaming and productivity builds.
Specifications
| CPU | LGA1700 socket; Supports 14th, 13th, 12th Gen Intel® Core™, Pentium® Gold, Celeron® (check GIGABYTE site for latest). L3 cache varies with CPU |
| Chipset | Intel® B760 Express Chipset |
| Memory | 4× DDR5 DIMM, up to 192 GB (48 GB per DIMM), Dual channel. • i9/i7 (13th/14th Gen): DDR5 5600/5200/4800/4400 MT/s • i5/i3 (13th Gen) & 12th Gen Core/Pentium Gold/Celeron: DDR5 4800/4400 MT/s ECC Un-buffered (non-ECC mode), Non-ECC Un-buffered, XMP support |
| Onboard Graphics | Intel® HD Graphics (depends on CPU) • D-Sub: up to 1920×1200@60Hz • HDMI: up to 4096×2160@60Hz (HDMI 2.1, HDCP 2.3) • DisplayPort: up to 4096×2304@60Hz (DP 1.2, HDCP 2.3) • Triple-display support |
| Audio | Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1-channel, configurable via software, S/PDIF Out support |
| LAN | Realtek® GbE LAN (1 Gbps/100 Mbps/10 Mbps) |
| Wireless | Realtek® Wi-Fi 6 RTL8851BE (2.4/5 GHz, a/b/g/n/ac/ax, 11ax 80MHz), Bluetooth 5.3 |
| Expansion Slots | • CPU: 1× PCIe 4.0 x16 (GPU/NVMe SSD only) • Chipset: 2× PCIe 3.0 x1 |
| Storage | • CPU: 1× M.2 (PCIe 4.0 x4/x2, 2280) • Chipset: 1× M.2 (PCIe 4.0 x4/x2, 2280), 4× SATA 6Gb/s • RAID 0/1/5/10 support (SATA only) |
| USB | • Internal: 1× USB-C (3.2 Gen1), 2× USB 3.2 Gen1, 4× USB 2.0 • Rear: 3× USB 3.2 Gen1, 2× USB 2.0 |
| Internal I/O | 24-pin ATX, 8-pin ATX 12V, 1× CPU fan, 3× system fans, 1× ARGB header, 1× RGB header, 2× M.2, 4× SATA, front panel, audio header, USB headers, TPM header, serial & parallel headers, S/PDIF Out header, Q-Flash Plus button, reset/CMOS jumpers |

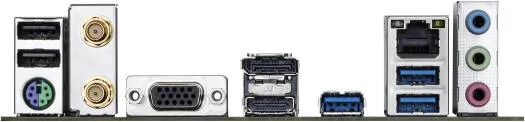

| Back Panel | 2× USB 2.0, 1× PS/2, 2× SMA antenna, 1× D-Sub*, 1× HDMI*, 1× DisplayPort*, 3× USB 3.2 Gen1, 1× RJ-45, 3× audio jacks (*support depends on CPU) |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed, water flow rate, fan fail warning, fan control (depends on fan) |
| BIOS | 128 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus |
| Bundled Software | Norton® Internet Security (OEM), LAN bandwidth management |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX, 24.4 × 24.4 cm |
